Trend T18S/R14KB 18V BL ROUTER PB SET BARE UNIT

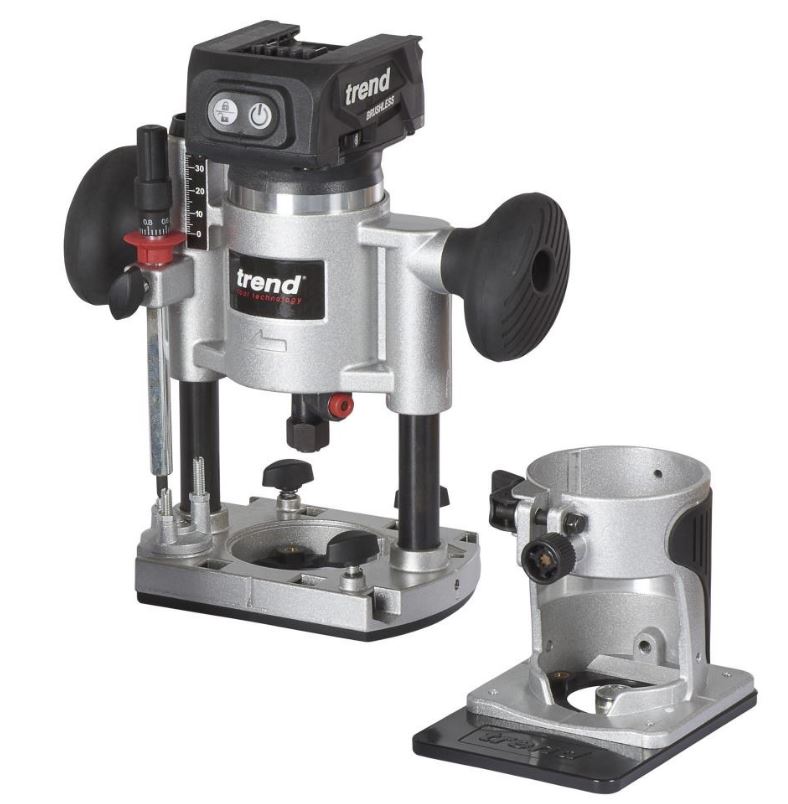

Trend T18S/R14KB 18V 1/4" Brushless Router Kit (Bare Unit)

Features:

• Trend High Performance Brushless Motor – Longer motor life, more Power, More run time.
• 60mm Plunge Depth – Market leading plunge depth gives access to a wider range of applications.
• Dual Bases - Plunge and Trim base options for a wide range of applications including Trend trade hinge jigs.
• Guide Bush Centralising Feature - For accuracy and precision when using jigs and templates.
• Trend Base Configuration - Direct fit for Trend guide bushes for increased range of routing applications.
• Variable Speed - Controlled cutting on materials including hard and soft woods, sheet materials, laminates and plastics.
• Micro-Adjustable Depth Setting - For precision jointing and inlaying tasks.
• Quick Release Plunge Lock – For fast and controlled plunge routing.
• Extended Trim Base – Elongated base plate for controlled offset pressure to prevent tipping.
• Adjustable Depth Stop – Adjustable collar on depth post for fast repeatable cutting depths.
• Multi Slit 1/4in ER Collet – Double lock safety feature for concentric gripping and maximum cutter shank support.
• Twin Led Lights – Built in LED’s illuminates the work area for finer control and accuracy.
• Safety On/Off Switch – safety switch locks the router to prevent accidental operation.
• Dust Kit – Extraction adapter kit to help capture harmful dust particles.
• Side Fences – For grooving and moulding in from an edge.

Specification:

• Motor: 18V Brushless
• No Load Speed: 10000-300000/min
• Depth Of Cut (Trim Base): 37mm
• Depth Of Cut (Plunge Base): 60mm
• Collect: 1/4" Multi-Slit
• Base Material: Aluminium
• Weight: 2.25kg (bare with plunge base)

Runtime claim:

• Up to 33 internal doors fitted, 134 hinge Recess cut (4Ah battery Hinge test in Ash - 75mm x 20mm x 2mm - 2 hinges per door and frame)
• Up to 7 doors fitted, 40.6m intumescent strip (4Ah battery intumescent strip test in oak – 10mm x 4mm cut 5.5m per door)

Supplied with:

• 1 x ¼” ER collet
• 1 x Centring Cone
• 1 x Spanner pressed steel
• 1 x Guide bush 16mm euro style
• 1 x Trim base with Euro guide bush fitting
• 1 x Trim Base dust Spout
• 1 x Pressed Steal Trim Base Side fence
• 1 x Plunge base with 60mm plunge, and TBC (Trend base configuration accepts Euro guide bush fitting
• 1 x Plunge Base side fence with 8mm x 84mm rods
• 1 x Plunge Base dust spout
