TREND PH/JIG POCKET HOLE JIG + FREE POCKET HOLE ALIGNMENT CLAMP

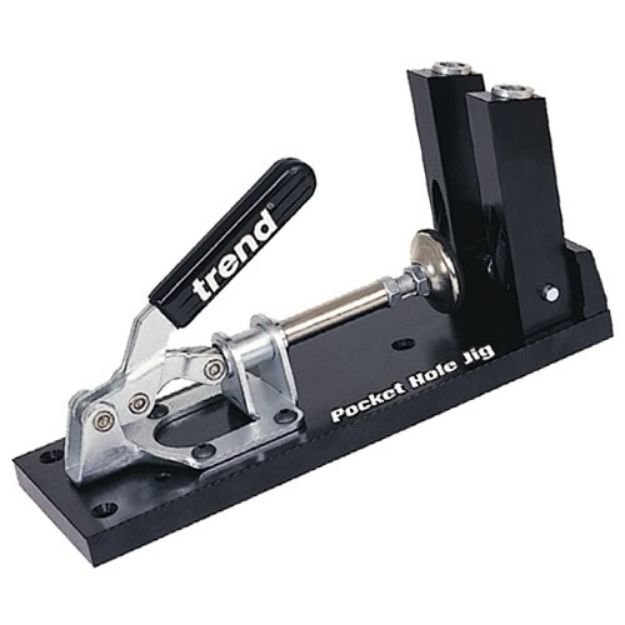

TREND PH/JIG POCKET HOLE JIG

The Trend Pocket Hole Jig Allows For fast and accurate joining of timber and plywood giving strong instant joints.
Solid hardened bushes with variable pitch of 29mm to 63mm. Use on timber, MDF, plywood and blockboard.
Allows a variety of joints to be created individually.
Uses square drive self tapping screws.
Workpiece can be handled immediately after gluing & screwing creating time saving benefits.
No clamps required.

Product Specifications

Material thickness min.= 16 mm
Material thickness max.= 38 mm
Material width min.= 38 mm
Hole pitch= 29 mm-63 mm
Drill diameter= 9.5 mm
Square drive bit size= No.2
Screw sizes= No.7 x 30 mm

INCLUDES:

100 x Dome head screws
1 x Face clamp
1 x HSS drill bit with collar
1 x 75mm Square drive bit
1 x 150mm Square drive bit
1 x Hex key 4mm A/F
1 x Hex key 2.5mm A/F
