TREND ELLIPSE J/A CIRCLE CUTTING JIG

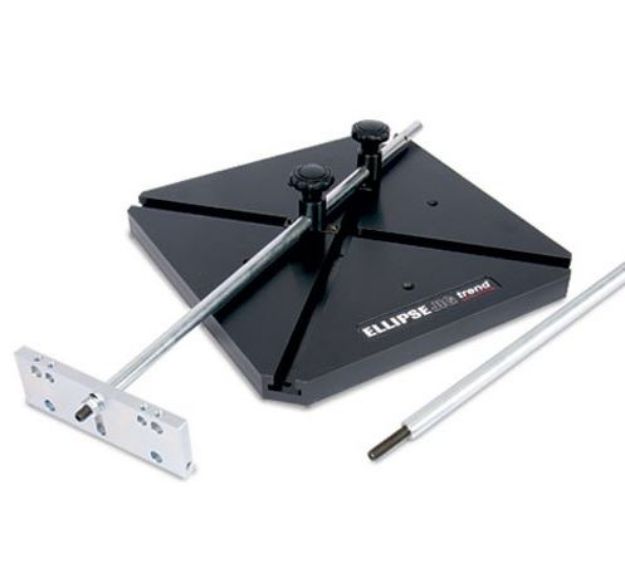

Trend Ellipse J/A Circle & Cutting Jig

The Trend Ellipse & Circle Cutting Jig is designed to enable virtually any router to cut ellipses and circles, while its smaller counterpart, the Mini Ellipse Jig is ideal for routing elliptical picture frames, mirrors, clocks and small coffee tables

Engineered to close tolerances with cross frame machined in 16mm thick duralium.
Setting-up and operating is simple and effective
A connector plate on the end of the bar fits directly onto the fence rods of Trend routers. For the fixing of other makes of routers, a false base-plate is fitted to the bar adaptor for attachment to the router base.
By using one slide, the jig can be adapted for cutting circles from 550mm up to 1800mm in diameter.
With additional extension bars, larger ellipses and circles can be cut.

Jig includes

1 x Cross frame
2 x Sliders
2 x 500mm bars
1 x Connector plate
1 x Spanner
1 x Set of screws
1 x Instruction manual
