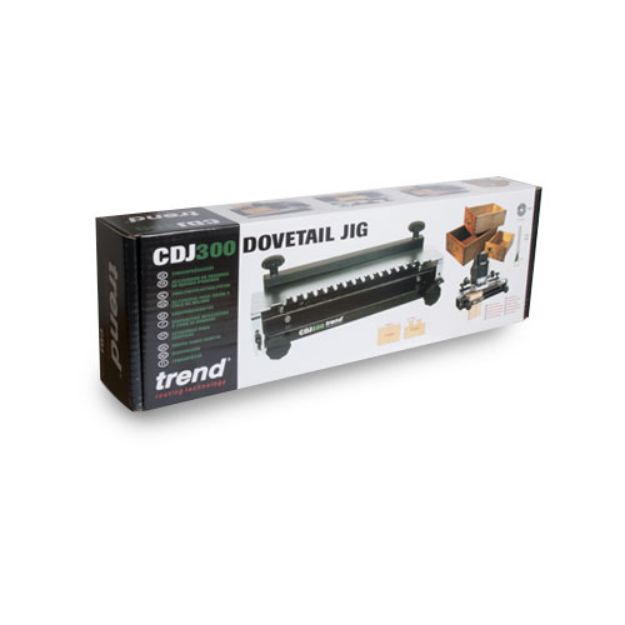

Trend Craft Dovetail Jig 300mm

The Trend CDJ300 Craft dovetail jig - Accurate and easy to use for a variety of elegant dovetail joints. It cuts 12.7mm (1/2 inch) wide half blind dovetails or rebated dovetails in one operation. The CDJ300 is precision made laser cut zinc plated steel template with packing piece. Please note a Unibase and fine height adjuster may be required for certain makes of router.

FEATURES:

• Cuts 12.7mm (1/2 inch) wide half blind dovetails or rebated dovetails in one operation.
• Precision made laser cut zinc plated steel template with packing piece.
• A Unibase and fine height adjuster may be required for certain makes of router.
• A range of accessory templates are available for box joint, dowel and through dovetails.

SPECIFICATION:

• Rating - Craftsman
• Dovetail size - 12.7mm
• Workpiece width max. - 300mm
• Workpiece thickness min. - 12mm
• Workpiece thickness max. - 25mm
• Guide bush size - 15.8mm
• Router base dia. max - 180mm

INCLUDES:

• 1 x 1/4" Shank TCT 104 degree dovetail cutter
• 1 x 15.8mm Guide bush
