Rotabroach Element 50-1PM Pivot Magnetic Drill 110v

Rotabroach Element 50-1PM Pivot Magnetic Drill 110v - PMGDR11-50-1PM
€1056.91 excl vat
Brand: Rotabroach
SKU: PMGDR11-50-1PM
In stock
+ -

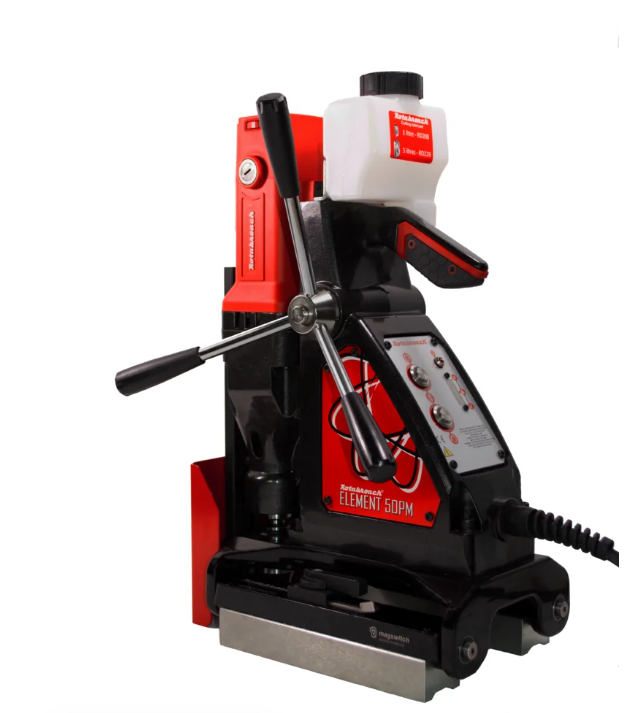

Rotabroach Element 50-1PM Pivot Magnetic Drill 110v

The latest addition to the Rotabroach range, the E50 Pivot Magnet is specifically designed for drilling on curved, uneven surfaces. With its permanent magnet, the E50PM retains magnetic adhesion, even on thinner surfaces.

Features

​-Maintains strong grip on curved steel and pipework down to 3.5mm material thickness.
-Can be also used for standard flat surface drilling.
-Twist drill, threading and countersinking capability.
-Permanent magnet technology – magnet does not require electrical power.
-Double pivoting magnet base – two separate magnets allowing machine movement in-between drilling for inspection & debris removal without losing position.
-Safe and hidden away internal cabling.
-Mounted coolant bottle, steel sliding guard and switchable handle.
-Centered control panel with Cutsmart™ for increased tool and machine life.


Specification:
Model Number Element 50/1PM
Motor Specification 110V / 1500W
No Load rpm Low Gear: 100-265 RPM / High Gear: 200-500 RPM
Maximum hole cutting capacity ø50 x 50mm Deep – 20mm with 2MT Shank Drill
Overall dimensions

Height 490mm Min / 640mm Max

Width 190mm (with capstan)

Length 317mm (with guard)

Machine weight 18.0kg
Magnetic adhesion 8430N Magnet Size:277mm x 190mm
Safety features

Cutsmart2™ Technology / Fixed guard

 Magnetic Detection / Secondary motor protection

*
*
*
