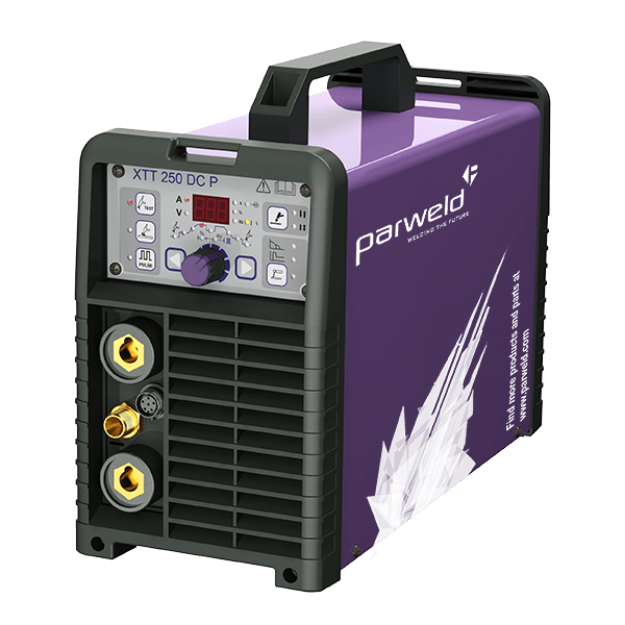

PARWELD XTT250DCP-P1 250AMP 400VOLT PULSED HF TIG INVERTER C/W TORCH & REGULATOR

PARWELD XTT250DCP-P1 250AMP 400VOLT PULSED HF TIG INVERTER C/W TORCH & REGULATOR - WTWTWPW-XTT250DCP-P1
€731.71 excl vat
Brand: Parweld
SKU: WTWTWPW-XTT250DCP-P1
Out of stock
+ -

PARWELD XTT250DCP-P1 250AMP 400VOLT PULSED HF TIG INVERTER C/W TORCH & REGULATOR

The XTT 250 DC P can be used for TIG or MMA welding allowing the welding of a wide range of steels and alloys.
DC output and power pulsing maximises productivity whilst reducing heat output.
The majority of steels can be welded in DC mode quickly using the pulse power function, giving the flexibility of reducing heat input or increasing the welding speed and weld penetration at higher pulse frequencies. Materials up to 8mm can be TIG welded, and thicker using MMA.

Parweld offers a fully comprehensive range of MIG, TIG, MMA and Plasma machines. The Parweld machine range offers robust, reliable and easy to use machines, for experienced welders and for those learning.
Ranging from small machines that will suit the occasional maintenance work to heavy duty machines for large fabrication.
Whatever your requirements, Parweld has a machine that will suit your needs.
All machines are manufactured to ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS directive, low voltage directive, EMC directive (CE Compliant).
TIG Welds Steel & Stainless Steel to 8mm, Full TIG Parameter Adjustment, Pulse Function for Superior Arc Control

ADDITIONAL INFORMATION

OUTPUT CURRENT 5-250A DC
INPUT VOLTAGE  400V 3P
INPUT CURRENT (MAX) 8.6A
MAXIMUM ELECTRODE SIZE 8mm
DUTY CYCLE 250A @ 40%
FUSE RATING 16A
KVA  9.7
UP SLOPE FUNCTION 0-5s
DOWN SLOPE FUNCTION 0-5s
ATTRIBUTE:PRE-FLOW FUNCTION 0-10s
ATTRIBUTE:POST FLOW FUNCTION 0-10s
ATTRIBUTE:PULSE RATING 0.5-100Hz
ENCLOSURE PROTECTION IP23S
DIMENSIONS (MM) 404 x 170 x 296
WEIGHT (KG) 10.5
TECHNOLOGY MMA, TIG



*
*
*
