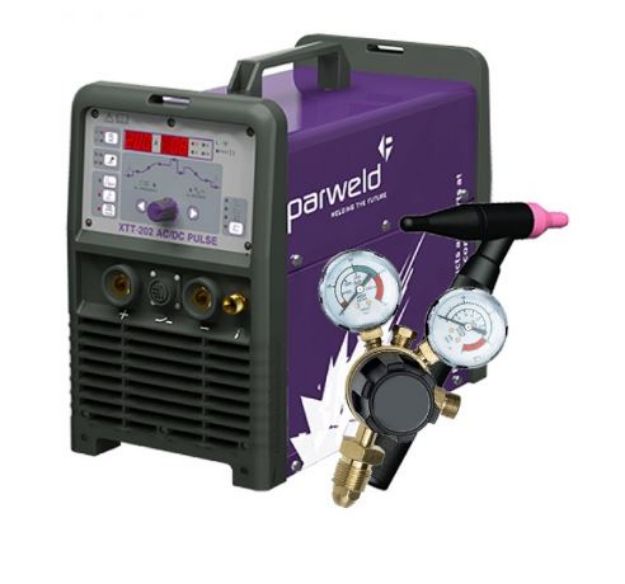

PARWELD XTT202P-P1 200AMP 230VOLT AC/DC PULSED HF TIG INVERTER C/W TORCH & REGULATOR
The XTT 202P can be used in both AC and DC modes for TIG or MMA welding allowing the welding of virtually any material.
Square wave AC output and power pulsing maximises productivity whilst reducing heat output.
The majority of steels can be welded in DC mode quickly using the pulse power function. The AC mode allows the welding of aluminium and magnesium alloy.
The square wave output and adjustable frequency maximises the arc energy offering high welding speeds when coupled with the power pulsing function.
Professional Level Dual Voltage DC TIG Inverter, suitable for light industrial manufacturing, maintenance repair, agriculture and DIY, training, sheet metal fabrication and site work
ADDITIONAL INFORMATION
OUTPUT CURRENT 5-200A DC 10-200A AC
INPUT VOLTAGE 230V 1P
DUTY CYCLE 200A @ 25%
DOWN SLOPE FUNCTION 0-10s
UP SLOPE FUNCTION 0-10s
KVA 3.6
INPUT CURRENT (MAX) 18A
ENCLOSURE PROTECTION IP23S
FUSE RATING 16A
ATTRIBUTE:PRE-FLOW FUNCTION 0-10s
DIMENSIONS (MM) 484 x 380 x 320
WEIGHT (KG) 25
ATTRIBUTE:POST FLOW FUNCTION 0-10s
KEY FEATURES
•230V Voltage
• 200A @25% Duty Cycle
• Square wave AC TIG mode
• Variable AC frequency
• Variable pulse frequency
• HF arc starting
• Digital control
• Optional foot control
• Generator friendly
• Adjustable downslope (TIG)
• Supplied with 3m earth lead
• Connections 35-50 Dinse
• 3 years return to base warranty
• Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant
TECHNOLOGY
MMA, TIG
