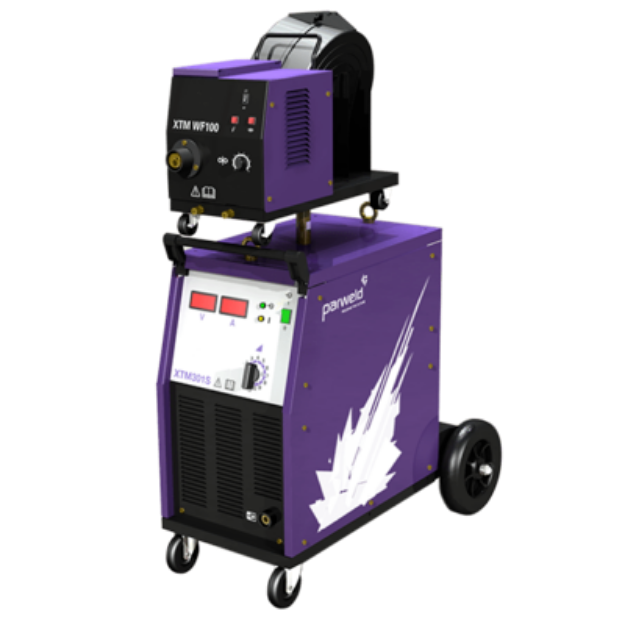

PARWELD XTM301S 300AMP 230VOLT SEPERATE MIG WELDER C/W 5MTR INTERCON, 4 ROLLER WIRE FEED

PARWELD XTM301S 300AMP 230VOLT SEPERATE MIG WELDER C/W 5MTR INTERCON, 4 ROLLER WIRE FEED - WMWMWPW-XTM301S
€1695.00 incl vat
Brand: Parweld
SKU: WMWMWPW-XTM301S
Out of stock
+ -

PARWELD XTM301S 300AMP 230VOLT SEPERATE MIG WELDER C/W 5MTR INTERCON, 4 ROLLER WIRE FEED

The XTM 301S offers the heavy fabrication industries quality welding performance at a competitive price.
DC Output
The XTM 301S has a DC output and when combined with the correct type of wire is suitable for welding mild steel, stainless steel and aluminium.
The machine is ideal for welding a range of materials from 1.0mm – 8.0mm.
Reliable Feeding
The 4 roll geared aluminium feed box ensures reliable feeding of 0.8mm and 1.2mm wires.
Flexible
The separate wire feed unit provides flexibility when working with large fabrications or where access is restricted.
Versatile and Portable
The XTM 301S gas a full size cabinet which can accept a full heigh gas cylinder, and its large wheels mean that it can be easily moved from job to job.
Professional single phase separate MIG machine, suitable for industrial manufacturing, metal fabrication and agriculture and DIY.

Fuse Rating 45A
Enclosure Protection IP23S
Weight (kg) 63
Attribute:Feed Box 4R
Input Current (Max) 50A
Attribute:Wire Feed Speed 2-18m/min
Input Voltage 230V
Attribute:Wire Size 0.8 – 1.2mm
Attribute:Spool Size 300mm
Attribute:Style Separate
Attribute:Maximum Current 300A
Attribute:Machine Type Transformer
KVA 10
Duty Cycle 270A @ 30%
Attribute:Voltage 16-29V
Dimensions (mm) 1035 x 430 x 795
rated output
 300A @ 20%
270A @ 30%
173A @ 60%
technology MIG
Key Features
• 230V Single Phase
• 270A @ 30% Duty Cycle
• 4 roll drive
• Forced air fan cooling
• Infinitely variable wire speed
• Overload warning indicator
• Burn back control
• Soft start control
• Holds 15kg wire spools
• Stand for full size gas cylinder
• 3 years return to base warranty
• Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant
dimensions 800mm x 420mm x 770mm
spot weld timer 0-10 s
standards of conformance EN / IEC 60974-1
RoHS Directive, Low Voltage Directive, EMC Directive (CE Compliant)
wire electrode 0.8mm – 1.2mm
output range volts 17-29V
insulation/protection class H
input power voltage 230V / 50-60Hz
output range amps 60A-300A
weight 110 Kg
fuse 45A
mechanical protection IP21S
phase Single Phase



*
*
*
