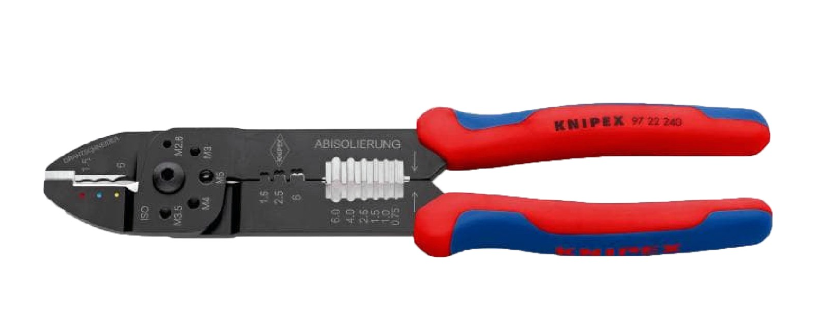

Knipex 97 22 240 Crimping Pliers
Cutting and insulating fine wire, shortening threaded pins and screws
These universal crimping pliers can also be deployed before crimping: e.g. for cutting and stripping cable and wire. The suitably dimensioned openings prevent damage to the strands during wire stripping. A further function is available. As these crimping pliers are manufactured from high strength special steel, threaded pins and screws made of soft material can be accurately cut to length, while the thread is protected.
Specifications
With threaded holes for cutting copper and brass screws threaded M 2.6 / M 3 / M 3.5 / M 4 and M 5
Bolted joint for higher stability and even movement
Special steel, high-strength
Pliers black lacquered
Handles with multi-component grips
Weight 270 g
Dimensions 240 x 62 x 25 mm
REACH compliant does not contain SVHC
RoHS compliant not applicable
Application insulated terminals + cable connectors
Capacity in square millimetres 0.5 — 6.0 mm²
Number of crimping positions 3
AWG 20 — 10
