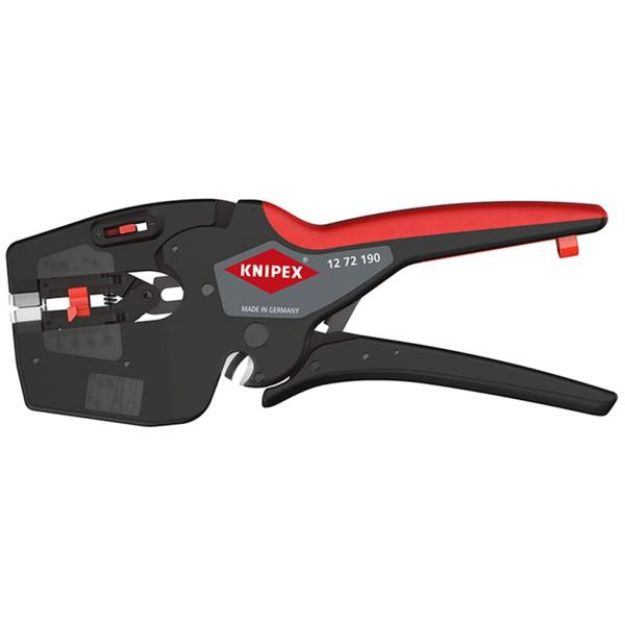

KNIPEX 12 72 190 AUTOMATIC STRIPPING/CRIMPING TOOL 0.25 -4MM2

KNIPEX 12 72 190 AUTOMATIC STRIPPING/CRIMPING TOOL 0.25 -4MM2
€109.88 excl vat
€129.27 excl vat
Brand: Knipex
SKU: EHTPLKX-1272190
In stock
+ -

KNIPEX 12 72 190 AUTOMATIC STRIPPING/CRIMPING TOOL 0.25 -4MM2

FEATURES:
Perfect crimping: fast and even square crimping for individual wire ferrules, the ratchet crimping mechanism guarantees the required crimping pressure.
Precise stripping: automatically adapts to the respective cable diameter and ensures consistent stripping lengths with the adjustable length stop especially with repetitive work.
Multi-component grips ensure non-slip, comfortable handling.
Quick, precise square crimp of single wire ferrules according to DIN 46228 parts 1+4, self-adjusts for sizes 0.25 – 4 mm² / 2 x 2.5 mm² – allows for quick crimping between different sizes
Repetitive, high crimping quality due to ratcheting mechanism with a complete crimping cycle.
Stripping with fine adjustment – for optimal adjustment to special materials or temperature conditions for flexible and solid conductors between 0.03 and 10 mm² (AWG 32-8).
Cleanly cuts conductors up to 10 mm² (AWG 8).
High-quality housing made of glass fibre reinforced plastic.
For the electrical trade: for domestic installations and wiring of electronical devices, such as PLC (programmable logic controller).
Wire stripper with three functions: stripping wire up to 10 mm², crimping capacity of 4 mm² or 2 x 2.5 mm² and cutting capacity of 10 mm².

SPECIFICATION:
Cutting capacity:
up to 10mm²
AWG: 8
Stripping capacity:
0,03 - 10 mm²
AWG: 32 - 8
Crimping capacity:
Crimping wire ferrules: 0,25 - 4 mm²
Crimping twin wire ferrules: 2 x 2,5 mm²
AWG: 32 - 8
Length (cm): 19
Width (cm): 1,7
Height (cm): 11
Weight (kg): 0,170



*
*
*

KNIPEX 12 72 190 AUTOMATIC STRIPPING/CRIMPING TOOL 0.25 -4MM2

FEATURES:
Perfect crimping: fast and even square crimping for individual wire ferrules, the ratchet crimping mechanism guarantees the required crimping pressure.
Precise stripping: automatically adapts to the respective cable diameter and ensures consistent stripping lengths with the adjustable length stop especially with repetitive work.
Multi-component grips ensure non-slip, comfortable handling.
Quick, precise square crimp of single wire ferrules according to DIN 46228 parts 1+4, self-adjusts for sizes 0.25 – 4 mm² / 2 x 2.5 mm² – allows for quick crimping between different sizes
Repetitive, high crimping quality due to ratcheting mechanism with a complete crimping cycle.
Stripping with fine adjustment – for optimal adjustment to special materials or temperature conditions for flexible and solid conductors between 0.03 and 10 mm² (AWG 32-8).
Cleanly cuts conductors up to 10 mm² (AWG 8).
High-quality housing made of glass fibre reinforced plastic.
For the electrical trade: for domestic installations and wiring of electronical devices, such as PLC (programmable logic controller).
Wire stripper with three functions: stripping wire up to 10 mm², crimping capacity of 4 mm² or 2 x 2.5 mm² and cutting capacity of 10 mm².

SPECIFICATION:
Cutting capacity:
up to 10mm²
AWG: 8
Stripping capacity:
0,03 - 10 mm²
AWG: 32 - 8
Crimping capacity:
Crimping wire ferrules: 0,25 - 4 mm²
Crimping twin wire ferrules: 2 x 2,5 mm²
AWG: 32 - 8
Length (cm): 19
Width (cm): 1,7
Height (cm): 11
Weight (kg): 0,170
