INE 300AMP WELDER COMPLETE WITH 4MT TWECO TORCH. REG AND FLOWMETER. 4MTR INTERCONNECTION CABLE

INE 300AMP WELDER COMPLETE WITH 4MT TWECO TORCH. REG AND FLOWMETER. 4MTR INTERCONNECTION CABLE

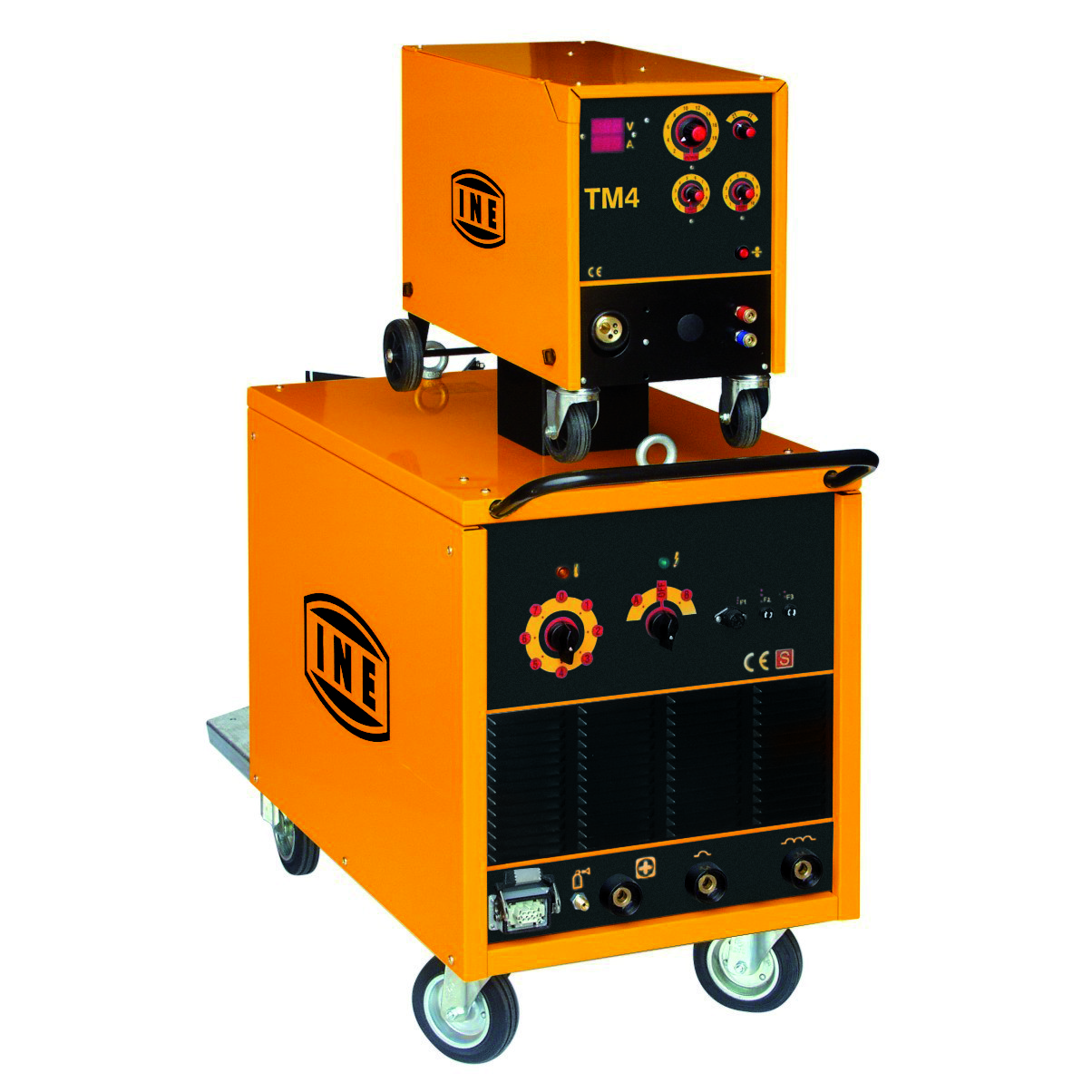

This is a single-phase electromechanical generator for seam welding (MIG/MAG), with separate electronically controlled wire feeder. It is an extremely strong, reliable and easy to use welder, ideal for all medium and light metal work. All the magnetic coils are made from top quality copper and forced ventilation cooled. This gives excellent performance with a 60% work cycle. A temperature probe protects the internal components. The progressive 16 position switching gives a wide range of settings for the welding parameters. The wire feeder with 2-roller TM2 or 4-roller TM4 gives smooth and constant rod flow, thanks to the control board and the 50W and 100W motors installed. On request they may be fitted with digital volt/ammeter. The connection extensions between the machine and wire feeder are available in standard lengths of 4, 10, 15 m.

Product Specification

Input (1Ph 50-60Hz) 230 V
Delayed line fuse 100-230 A
Max absorbed power (kVA) 13,5 kVA
Current range 40-300 A
Duty cycle at 60% 300 A
Duty cycle at 100% 220 A
No-load voltage 22-37,5 V
Protection class IP21S
Dimension (WxDxH) 530x1060x730 mm
