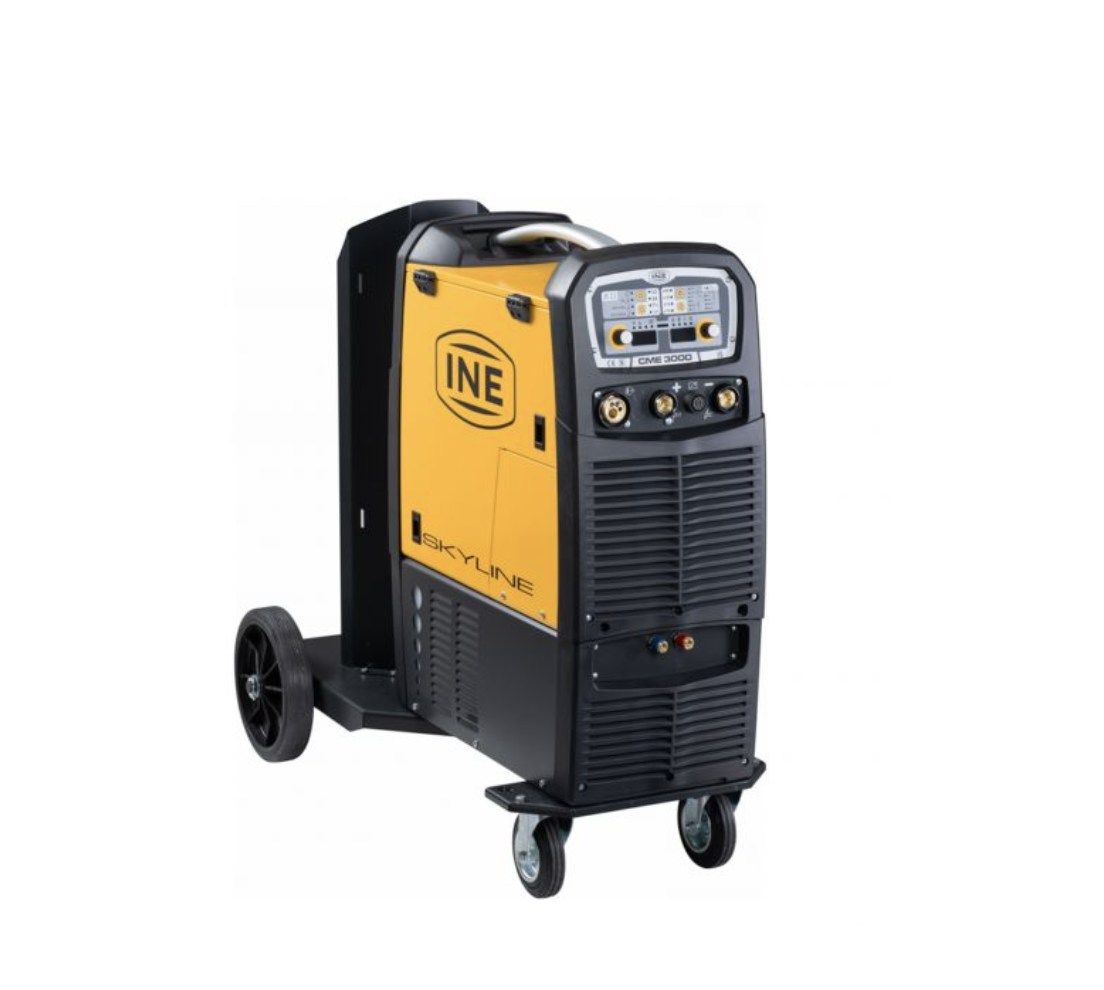

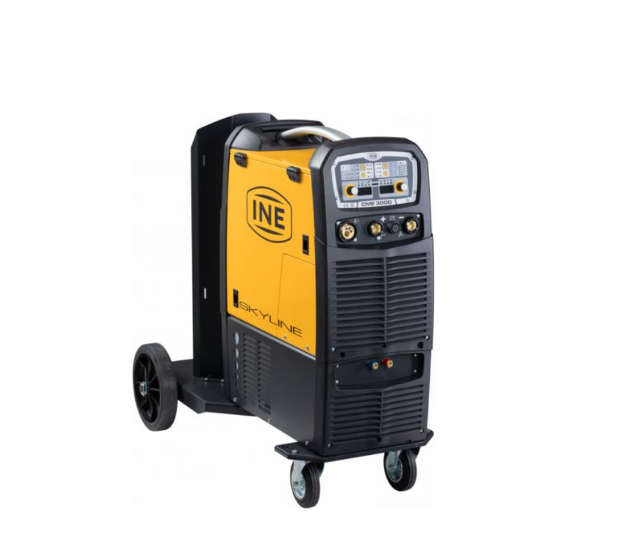

INE SKYLINE CME2000 230V MMA/MIG INVERTER 230V 4 ROLLER POWER SOURCE
Synergic DC and pulsed* inverter power source, with built-in wire feeder, for use in MIG/MAG welding of steel, iron-carbon alloys and aluminium. It can also be used in MMA welding with acid, mild steel and low-hydrogen electrodes. This model is mainly designed for use in maintenance and medium-to-light structural steel works.
The inverter technology and special design features allow for reduced weight and size without losing reliability and performance. The welding process, regulated by the microprocessor, ensures steady welding (with an exceptional dynamic even at low amperage), is splash-free and provides perfect arc striking. Synergic control allows for automatic selection of the welding parameters, even in the harshest working conditions, guaranteeing precision and repeatability
These generators have been designed for high performance, offering significant advantages in terms of efficiency and reliability. The efficiency of the processes saves production time; controlled ventilation and cooling allow for further reduction in energy costs.
Product Specifications
Main voltage 3x400 V
50-60 HZ
Delayed line fuse 12 A - 400 V
Max. absorbed power 10.7 kW
Power Factor 0.93
EFFICIENCY ? 90%
IDLE STATE 25W
CURRENT REGULATION RANGE 6÷300 A
Current regulation linear
Duty Factor 300A 40%
250A 60%
100A 100%
No-load voltage 55 V
Ø MMA electrodes 1.6÷5.0
Ø FILO MIG/MAG 0.8 - 1.0 - (1.2 AL)
Protection class IP23S
Weight 39 kg
76 kg (complete configuration)
Dimension (WxDxH) 302x645x525 mm
554x1015x910 mm (complete configuration)
