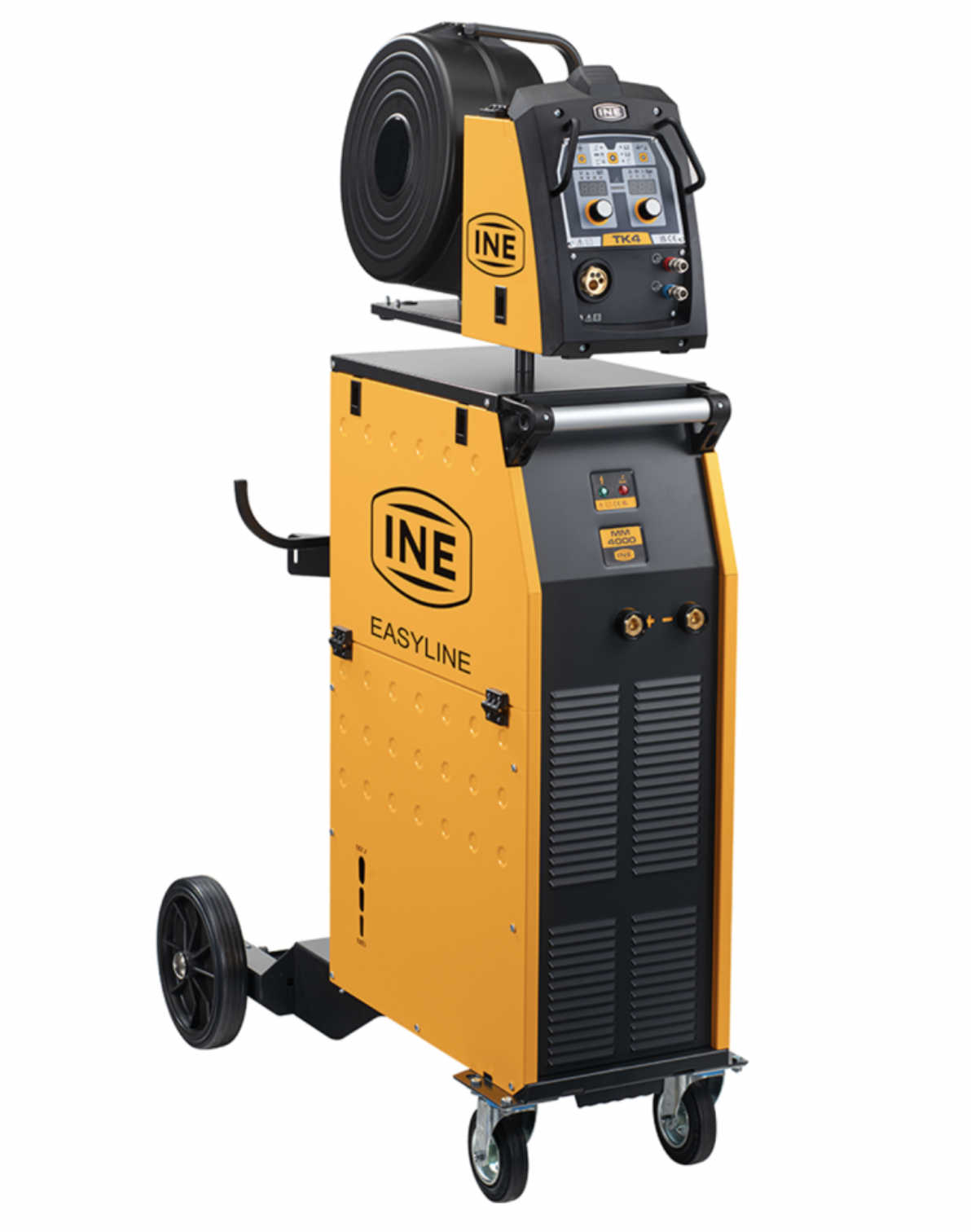

INE MM4000 400V MMA/MIG EASYLINE MM 4000 POWER SOURCE
The EASYLINE family was created as a technical evolution of the MK and MM transformator welding machines, offering a simple, robust and future-oriented alternative for the industrial sector. The philosophy behind the creation of the Easyline family is practicality. Through careful design and optimization of each component, the machines in the Easyline series are solid and durable. They are intended for intensive professional use, but even less experienced operators can achieve the best results thanks to straightforward and intuitive controls. The range covers all needs, offering 6 different models from 300 to 500 amperes, compact and with a separate wire feeder.
Product Specifications
Main voltage 3x400V~ (±15%) 50-60Hz
Delayed line fuse 16A - 400V~
Current regulation lineare
Max. absorbed power 16.0 kW
current range 6÷400A
No-load voltage 40% 400A I 60% 360A I 100% 320A
Current range 62V
Ø MMA electrodes 1.6÷6.0
Ø MIG/MAG WIRES 0.6 - 0.8 - 1.0 - 1.2
Protection class IP23S
Weight 60Kg
