Festool 577837 Edge Bander Conturo KA 65 Plus 240V
For furniture edging that is worthy of being called """"perfect"""". With an integral system that accompanies the new CONTURO KA 65 from the workpiece being prepared right through to the perfect edge finish. For classic furniture edging or manufacturing shaped parts with convex or concave curves. For finishing work in wood, melamine or plastic. For variable edge heights and material thicknesses up to 3 mm.
Strengths and benefits
Easy, clean and efficient working progress and patented cartridge gluing system for quick colour changes
Precision glue application for a perfect join quality and maximum adhesion
Nozzle system that is easy to clean, machine housing does not heat up, allowing safe working progress
Adhesive melts according to requirements and does not boil, discolour or deteriorate
Easy to handle, perfect ergonomics, clear view of the workpiece
Perfect in a system - integrated in a complete system of accessories and consumable materials for achieving the perfect edge
Main areas of use
Affixing wooden, plastic or laminated plastic edging to panel materials
Possible to attach edging to simple rectangular components or more complex free forms
Also as an addition to the machining centre, for affixing edging to complex free form and round elements
Suitable for mobile use, for rapidly reworking edges in situ
Suitable for stationary use and small batches, straight edges, free form elements and gluing inclined edges, angle from 0-47°
Technical details
Power consumption 1200 W
Edge height 18 - 65 mm
Edge thickness 0,5 - 3,0 mm
Inner radius >
50 mm
Heating time 8 min
Melting temperature 100 - 210 °C
Feed speed 2/4 m/min
Weight 7.9 kg
Edge banders: Uncertainty (noise) K 3 dB
Edge banders: Uncertainty (vibration) K 1.5 m/s²
Edge banders: A-weighted sound pressure level, LpA 65 dB(A)
Edge banders: A-weighted sound power level, LWA 76 dB(A)
Edge banders: Total vibration average, Ah 2.5 m/s²

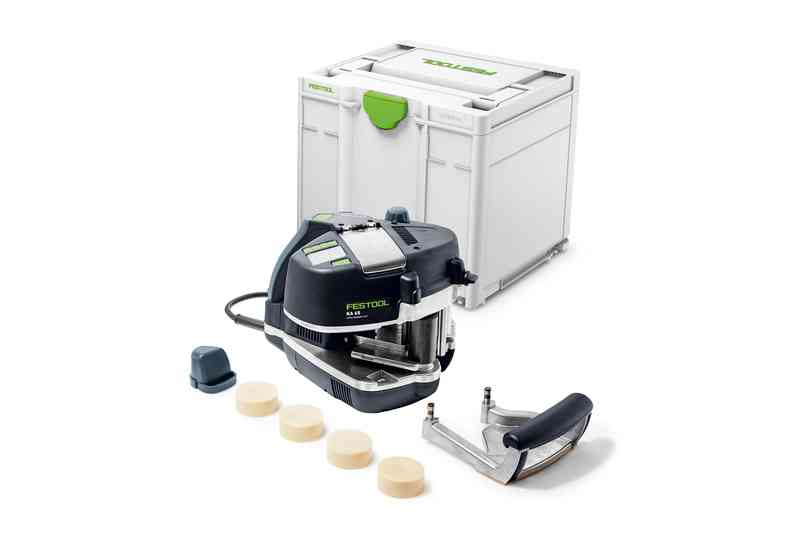

Items included
front handle
4 x EVA adhesive, natural
in SYSTAINER SYS 4 T-LOC
