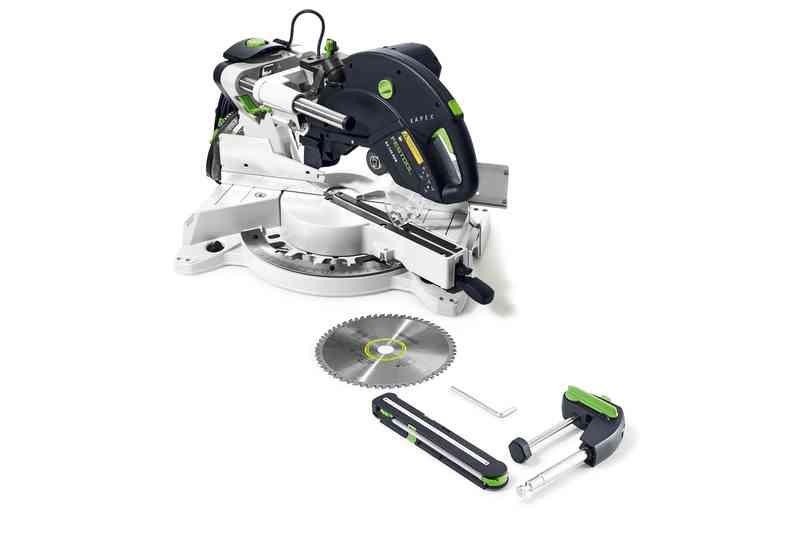

Festool 575304 KS 120 REB GB 240v Kapex Sliding Compound Mitre Saw
Guides left, guides right. Even where others only pretend to do so. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.
Twin-column guide with two bearings for unique precision
Dual-line laser for an accurate indication of the cutting line
Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
Special cutting position for cutting depths up to 120 mm
FastFix saw blade changing for adaptation to the working material
Twin-column guide for accurate cuts
Precision angle transfer via bevel and dual-line laser
Compact, lightweight design for convenient transportation
Safety brake
Specifications
Power consumption 1 600 W
Idle engine speed 1 400 - 3 600 min⁻¹
Saw blade diameter 260.00 mm
Cutting depth 90°/90° 305 x 88 mm
Cutting depth at 45°/90° 215 x 88 mm
Special cutting depth 90°/90° 60 x 120 mm
Crown moulding diagonal cut 45°/90° 168.00 mm
Inclination angle 47/47 °
Mitre angle 50/60 °
Dimensions (W x D x H) 713 x 500 x 470 mm
Cable length 3.50 m
Dust extraction connection diameter 27/36 mm
Special cut. depth 45°/90° (left) 40 x 120 mm
Special cutting depth 45°/90° (right) 20 x 120 mm
Cutting depth 50°/90° (left) 196 x 88 mm
Cutting depth 60°/90° (right) 152 x 88 mm
Cutting depth 45°/45° (left) 215 x 55 mm
Cutting depth 45°/45° (right) 215 x 35 mm
Crown moulding diagonal cut at 90°/90° 168.00 mm
Work height 900.00 mm
Product weight without accessories 24.30 kg
Transport weight incl. accessories 26.00 kg
Drive type Mains
