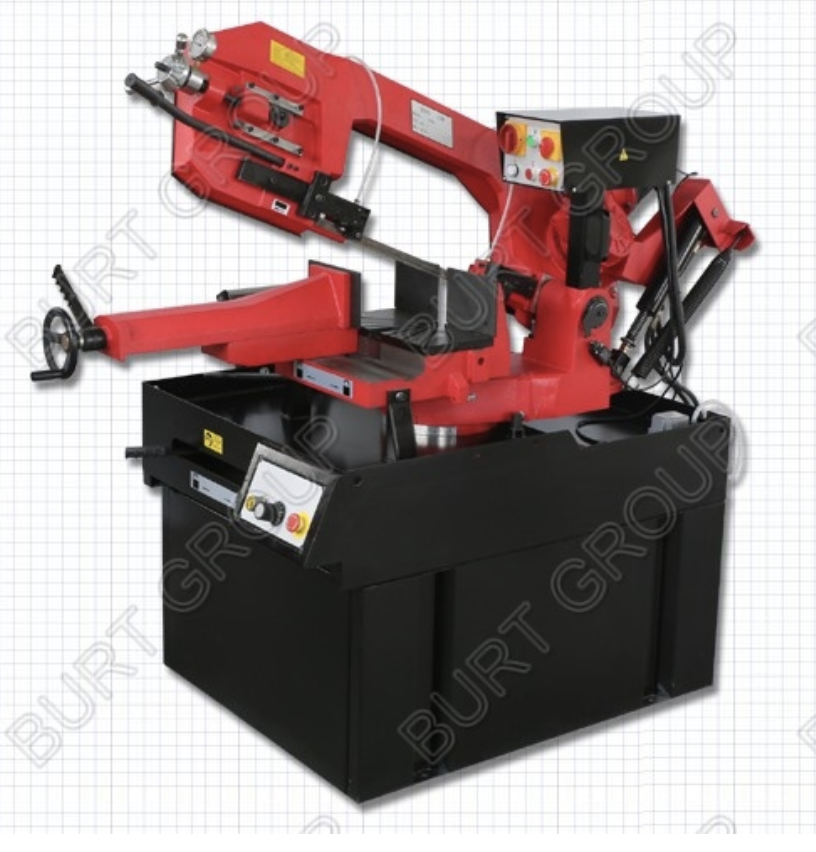

FALCOM MCD350HD SWIVEL HEAD METAL BANDSAW 230V MODEL G5027 BLADE 2950 X 27MM

FALCOM MCD350HD SWIVEL HEAD METAL BANDSAW 230V MODEL G5027 BLADE 2950 X 27MM - EMABS-MCD350HD
€4500.00 incl vat
SKU: EMABS-MCD350HD
In stock
+ -

FALCOM MCD350HD SWIVEL HEAD METAL BANDSAW 230V MODEL G5027 BLADE 2950 X 27MM

Band tension indication

Cast-iron arm
Cooling
Synoptic control cabinet
Rapid-action vice
Automatic hydraulic tilting with rotary arm


 Motor: 1.1KW / 2.2KW
Blade size: 2920X27X0.9mm
The bow swivel degree: -45°~ +60°
Cutting Capacity at 90°: ●270mm  260x260mm  350X240mm
Cutting Capacity at 45°DX: ●230mm  210x210mm  230X150mm
Cutting Capacity at 60°DX: ●140mm   140x140mm  140x140mm
Cutting Capacity at 45°SX: ●200mm   170x170mm  200X140mm
Working table height:950mm
N.G weight: 450/520kgs
Packing size(mm): 1750X940X1140 (body), 1180X530X230 (stand)
Units/20'container:12


*
*
*
