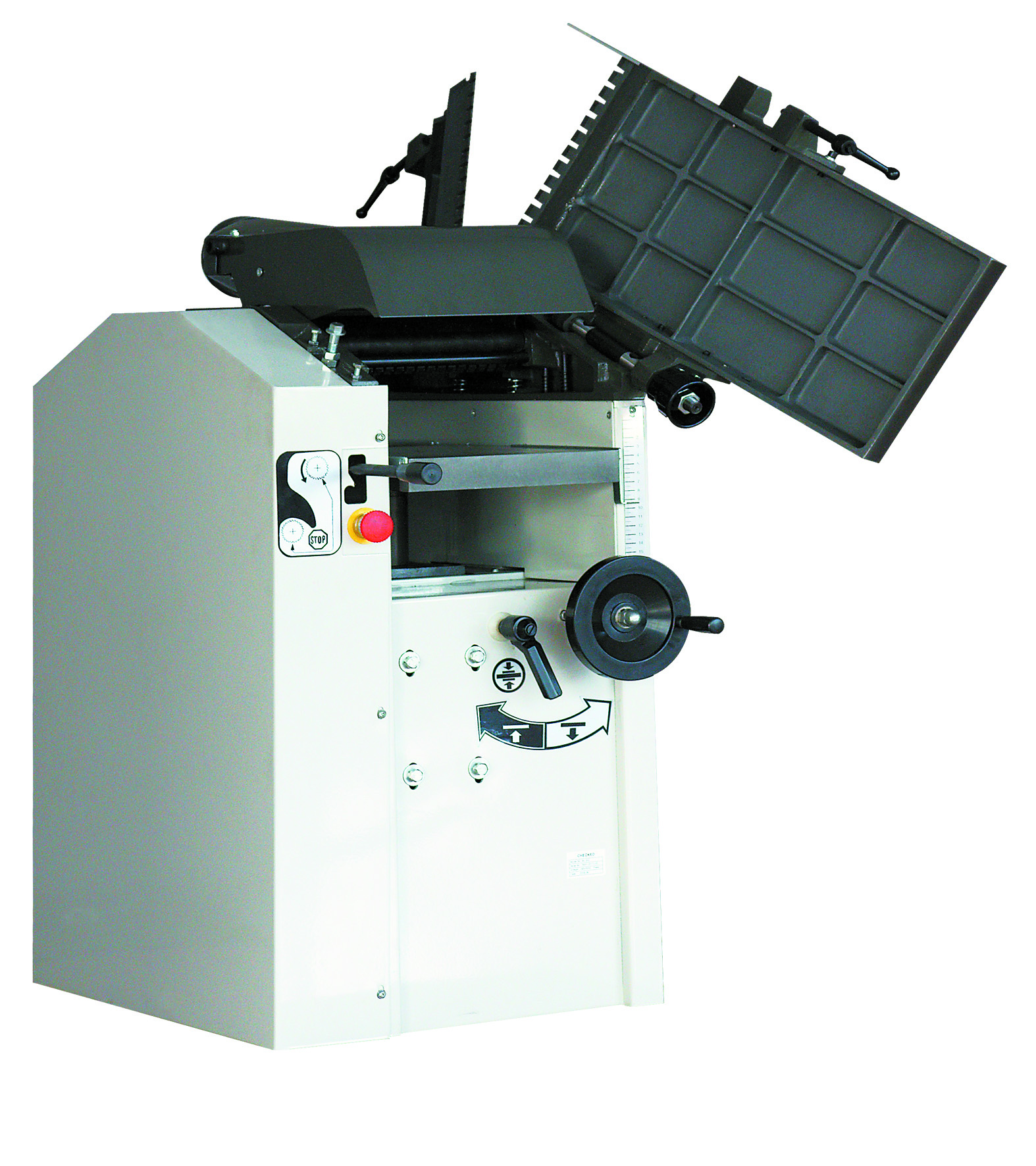

FALCOM 10'' 1500W PLANER THICKNESSER 230VOLT
10" Planer & Thicknessor
Product Specification
01) Motor: 1,500W
02) Planing table size: 250 x 1,050mm
03) Thicknessing table size: 250 x 600mm
04) Cutter block diameter: 75mm
05) Feeding block diameter: 40mm
06) Cutting knives: three
07) Fence tilt: 0 to 45 degrees
08) Dust chute diameter: 100mm
09) Maximum planing width: 250mm
10) Maximum thicknessing width: 250mm
11) Maximum cutting depth: 2.5mm
12) Maximum thicknessing height: 180mm
13) Cutter block speed 50Hz: 4,000rpm
14) Cutter block speed 60Hz: 4,800rpm
15) Feed speed 50Hz: 8m/min
16) Feed speed 60Hz: 9.6m/min
17) Packing size: 1,150 x 530 x 920mm
18) Net/gross weight: 148/170kg
