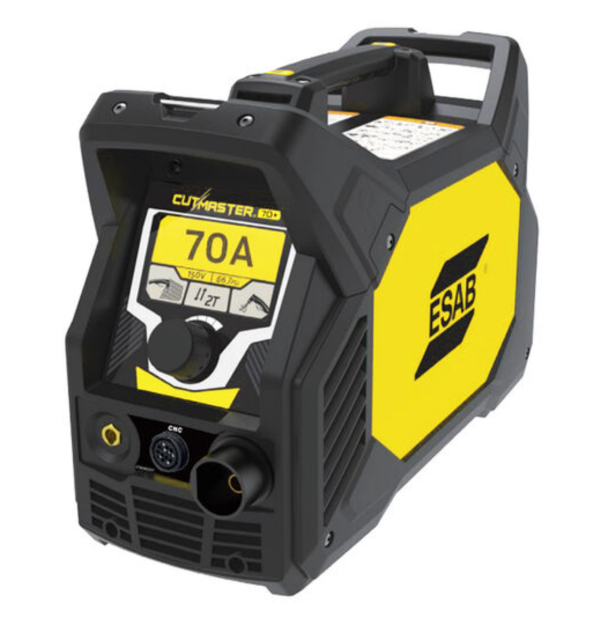

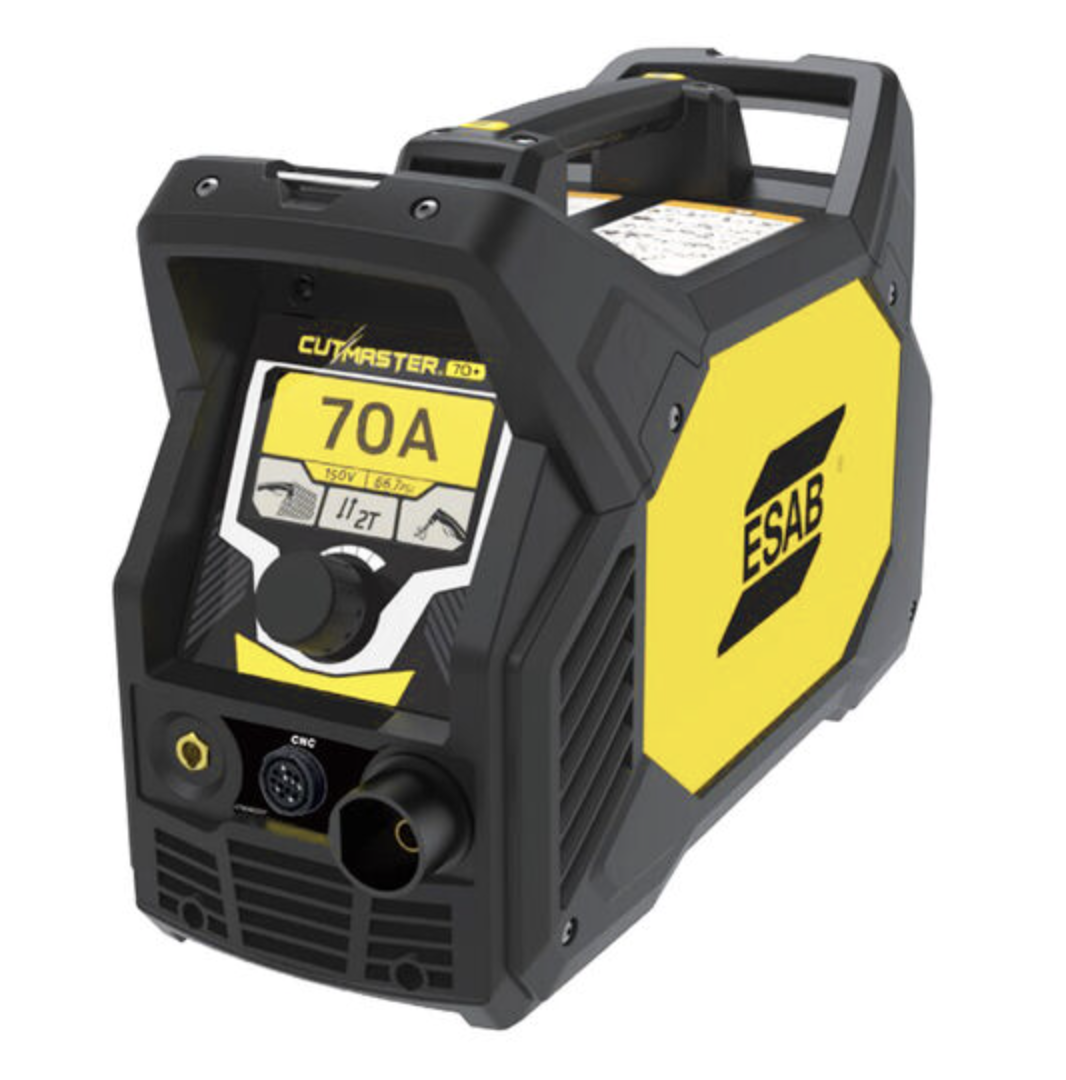

Esab Cutmaster 70+ c/w SL60 Torch - Pierce Capacity: 20mm (3/4"). Cutting Capacity: 30mm (1 1/8") Maximum Severance: 38mm (1 1/2")
Cutmaster 70+ is the perfect combination of power and portability for hand-held plasma cutting machines. Plus means more, so we’ve added a user-friendly 10.9 cm TFT LCD screen and upgraded features that give you even more control and flexibility to master any cut up to 30 mm. Together with the SL60 1Torch, it all adds up to the total plasma cutting package.
Portable and durable with three handles and lightweight, industrial all-weather housing
Bright 10.9 cm TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility
Input 400 V, 3-phase power
Includes industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
Switch between normal and grate cutting modes
Post-cut air purge to expand consumable life
Compatible with all ATC torch connections
Includes a complete package of general cutting and gouging consumables for most applications
Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads
CNC functionality with pre-installed 14 pin CPC receptacle and voltage divider which allows:
Start/Stop
OK to Move
Divided arc voltage (ratio 20:1, 30:1, 40:1, 50:1, 80:1)
Industrial and General Fabrication
Industrial Production & Manufacturing
Light Fabrication
Automotive Bodies
Hobbyist
HVAC
Agricultural Equipment
Repair and Maintenance
Pipeline
Training Schools
Product Specifications
Amp Low - High 15 A - 70 A, continuously adjustable
Recommended Generator 20+ kW
Input Volts 400 VAC, 3 Φ, 50/60 Hz
Duty Cycle
50 A @ 100 % % welding duty cycle
70 A @ 50 % % welding duty cycle
Operating Temperature -10 – 50 °C
Gas Requirements Compressed Nitrogen : 99.95% pureCompressed air Clean, dry, oil-free per ISO 8573-1 Class 1.2.2
Gas Pressure 6.2 –8.6 bar
Gas Flow 142 –235 l/min
Pierces 20 mm
Enclosure Class IP23S
Certification CE, UKCA
Dimensions, L x W x H
465 x 200 x 315 mm
Weight 17 kg
Maximum Cut 30 mm
Maximum Edge Start 38 mm
