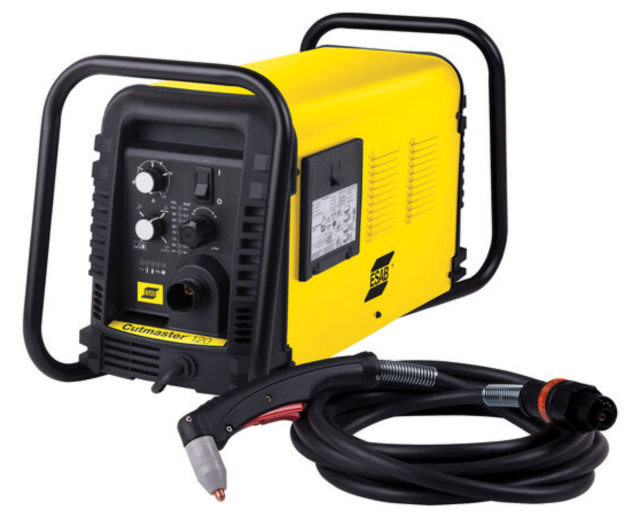

Esab Cutmaster 120 0mm 400V 3Ph Plasma Cutter C/W 6.1mtr Leads
The ESAB Cutmaster 120, weighing only 28 kg and provides 120 amps of cutting power for a 40mm (1-1/2”) recommended cut and 55mm (2-1/8”) maximum cut. This compact unit, like all other Cutmasters, comes standard with the 1Torch® providing you with the well known comfort and reliability famous throughout the industry.
True CutTM– 40mm 1-1/2”)
Quick Disconnect Torch for easy maintenance or machine torch conversion
Auto-Restrike on mesh or expanded metal for maximum productivity
True-GuardTM roll bar for ultimate protection
TD Surelok® technology for better quality cuts and parts life
Product Specificattions
Heavy Fabrication
Ship/Barge Building
General Manufacturing
Civil Construction
Pipeline
Mining
Recommended Generator 15.4 kW
Input Volts 400 V, 3 Φ, 50/60 Hz
Duty Cycle
120 A @ 40 % % welding duty cycle
Input Voltage 32 A @ 400 V / 400 V
Gas Pressure 5.2 bar
Gas Flow 212 l/min
Pierces 25 mm
Torch Air Pressure 5.2 bar
Torch Air Consumption 212 l/min
Dimensions, L x W x H
762 x 305 x 381 mm
Weight 28.1 kg
Recommended Cut 40 mm
Maximum Cut 55 mm
