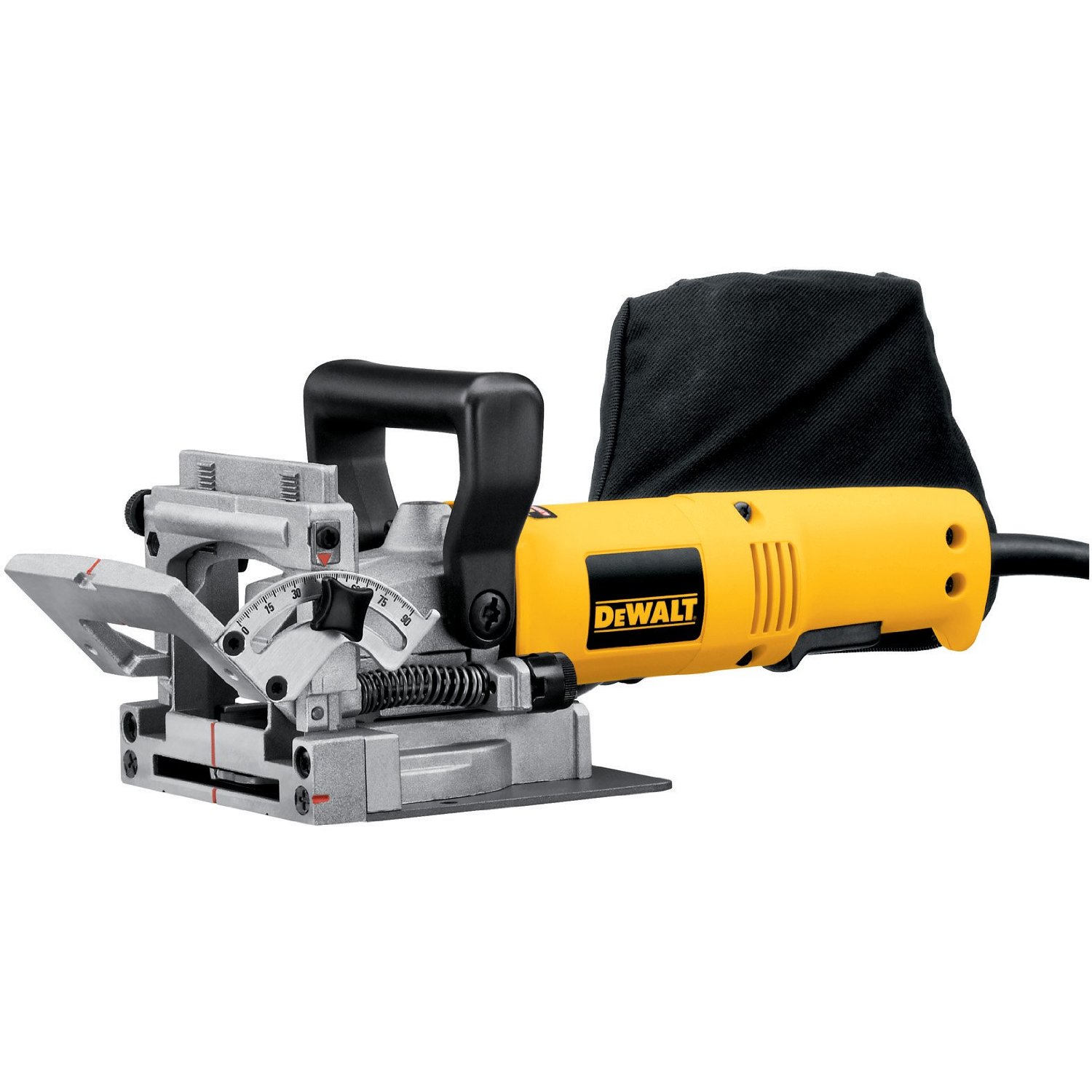

DEWALT DW682K 110V 600W BISCUIT JOINTER
Rack and pinion control provides precise vertical adjustment and fence alignment
Pre-set cutting depths for 0, 10 and 20 biscuit sizes with additional fine adjustment for ultimate accuracy
Grooving setting with up to 20 mm depth of cut gives increased versatility
Mitre fence that remains attached in all applications for simple use
Anti slide grippers, eight guiding notches and fence window to aid accurate cuts
Spindle lock mechanism for quick and easy blade changes with a single spanner
Product Specification
Power Input: 600 Watts
Power Output: 335 Watt
No Load Speed: 10000 rpm
Max. Cutter Diameter: 100 mm
Max. Cutting Depth: 20 mm
Fence adjustment: 0-90 °
Joint Groover Setting: 4 mm
Weight: 3.0 kg
Length: 320 mm
Height: 150 mm
Hand/Arm Vibration: 2.5 m/s2
Uncertainty K 1 (Vibration): 1.5 m/s²
Sound Pressure: 82 dB(A)
Sound Pressure Uncertainty: 3 dB(A)
Sound Power: 100 dB(A)
Sound Power Uncertainty: 3.1 dB(A)
