Suitable for cutting larger materials, but also capable of making accurate cuts in smaller pieces thanks to the highly accurate milled surfaces of the table and fences. This saw is fitted with a CUTLINE LED work light, which illuminates at the push of a button or when the trigger is pulled. The light shines past the blade, using the blade to make a shadow on the workpiece exactly where the blade will land.
As well as only needing one battery to operate, there are many other quality of life improvements of the DCS781 over the DHS780 including improved dust port placement, plus new technology to increase the runtime of each battery by recovering lost energy especially between shorter cuts.
FEATURES:
- Improved runtime thanks to better motor technology.
- Takes a 305mm diameter (12") blade.
- Suitable for professional trade users.
- Impressive cutting capacity.
- Only requires one battery to run.
- CutLine LED shadow line.
- Bare tool, sold without batteries.
SPECIFICATIONS:
- Operating Voltage:..... 54V
- Blade Diameter:..... 305mm (30mm Bore)
- Max No Load Speed:..... 3,800 rpm
- Max Cross Cut Capacity 90°:..... 310mm
- Max Mitre Capacity 45°:..... 219mm
- Max Depth of Cut 90°:..... 112mm
- Max Depth of Bevel Cross-Cut 45°:..... 50mm
- Max Mitre Angle (left/right):..... 50° / 60°
- Max Bevel Angle (left/right):..... 49° / 49°
0° mitre
Resulting width at baseboard max. height (165mm) 19mm
Resulting width at max height (112mm) 278mm
Resulting height at max width (310mm) 90mm
45° mitre left
Resulting width at max. height (112mm) 197mm
Resulting height at max. width (219mm) 90mm
45° mitre right
Resulting width at max. height (112mm) 197mm
Resulting height at max. width (219mm) 90mm
45° bevel left
Resulting width at max. height (60 mm) 278mm
Resulting height at max. width (310mm) 54mm
45° bevel right
Resulting width at max. height (50mm) 296mm
Resulting height at max. width (310mm) 40mm
INCLUDES:

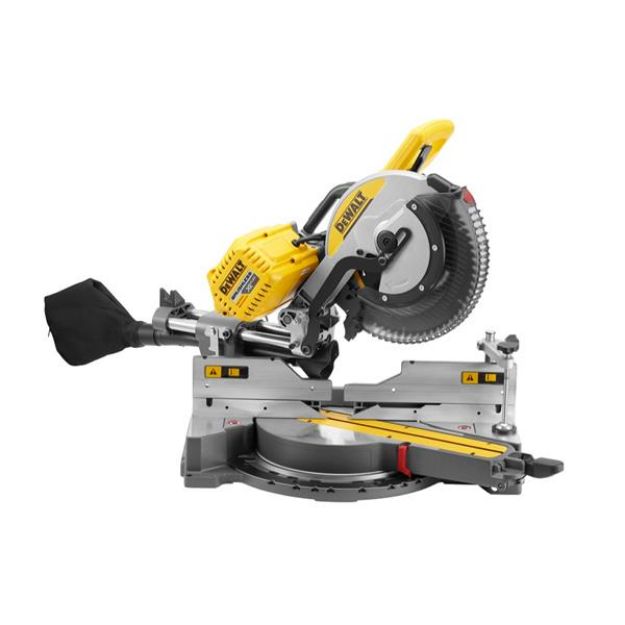

- 1 x DCS781N Mitre Saw (no Batteries or charger included)
