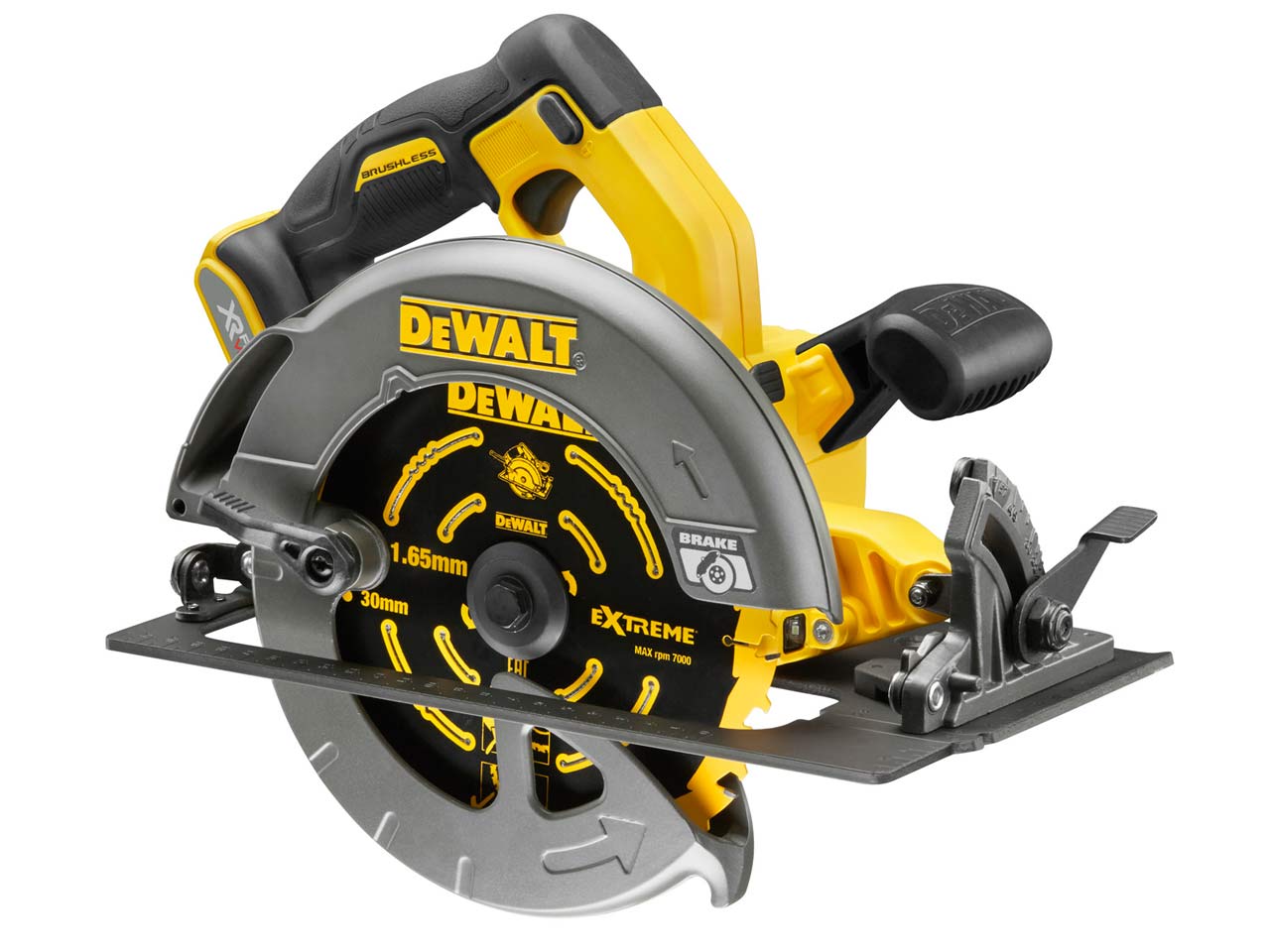

DEWALT DCS575N 54V XR Circular Saw bare unit
Scale for precise cutting depth setting to 67 mm
General purpose ripping, cross-cutting and bevelling circular saw for wood and other construction materials
High torque motor for durability and power for cutting job site and joinery materials
Stable block construction for low vibration running and long service life
Additional handle for safe two-handed work
Variable adjustment of the bevel angle to 57 degrees
Optimum balance for safe, fatigue-free operation
Product Specifications
No Load Speed 5800 rpm
Blade Diameter 190 mm
Blade Bore 30 mm
Bevel Capacity 57 °
Max. Depth of Cut at 90º 67 mm
Max. Depth of Cut at 90º[with guide rails] NA mm
Max. Depth of Cut at 45º 49 mm
Weight 3.6 kg
Length 355 mm
Height 245 mm
Hand/Arm Vibration 2.5 m/s2
Uncertainty K 1 (Vibration) 1.5 m/s²
Sound Pressure 92 dB(A)
Sound Pressure Uncertainty 3 dB(A)
Sound Power 103 dB(A)
Sound Power Uncertainty 3 dB(A)
Battery chemistry Li-Ion
Voltage 54v V
Battery Capacity 6.0Ah Ah
