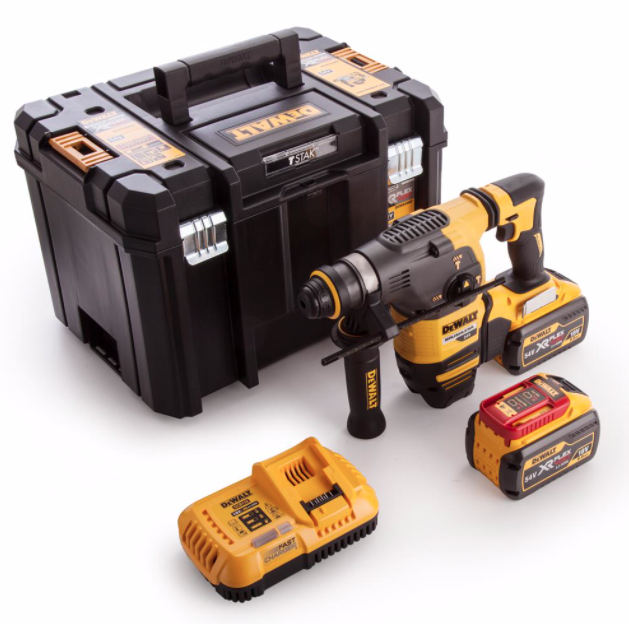

DEWALT DCH333X2 54V XR SDS PLUS DRILL
Category-leading high speed drilling performance at more than 66 holes (18mm Ø x 80mm) per charge
Rotation stop mode for light chiselling in plaster, tiles and render and impact stop mode for rotary only drilling in wood and metal
Brushless motor with high capacity XR FLEXVOLT 9.0Ah 18V/54V Lithium-ion battery platform for extreme runtime and reduced maintenance
Perform & Protect: best-in-class vibration at 8.5m/s², minimising user fatigue
Bright white LED with delay feature improves visibility
Ideal for drilling anchors and fixing holes into concrete, brick and masonry from 4mm to 30mm
Compact, lightweight and ergonomic design for improved comfort and support during extended operating periods
Product Specifications
Tool Holder SDS-Plus
Voltage 18/54 V
Power Output 0 Watt
Impact energy (EPTA 05/2009) 3.5 J
No Load Speed 0-1000 rpm
Blows per Minute 0-4480 bpm
Max. Drilling Capacity [Concrete] 30 mm
Max. Drilling Capacity [Wood] 30 mm
Max. Drilling Capacity [Metal] 13 mm
Weight 3.7 kg
Weight (incl. battery) 4,950 g
Length 400 mm
Height 250 mm
Width 95 mm
Hand/Arm Vibration - Hammer drilling into concrete 7.5 m/s²
Uncertainty K 1 (Vibration) 1.5 m/s²
Hand/Arm Vibration - Chiselling 8.5 m/s²
Uncertainty K 2 (Vibration) 1.5 m/s²
Hand/Arm Vibration - Drilling into metal <2.5 m/s²
Uncertainty K 3 (Vibration) 1.5 m/s²
Hand/Arm Vibration - Screw driving without impact <2.5 m/s²
Uncertainty K 4 (Vibration) 1.5 m/s²
Sound Pressure 94 dB(A)
Sound Pressure Uncertainty 3 dB(A)
Sound Power 105 dB(A)
Sound Power Uncertainty 3 dB(A)
Battery chemistry XR FLEXVOLT
Battery Capacity 9.0 Ah
